Fitting data to models

Overview

Teaching: 50 min
Exercises: 10 min

Questions

How do I fit my data to a scientific model.

Objectives

Import the scipy.optimize library.

Understand the curvefit function.

Print the results from curvefit.

Plot the data from curvefit.

Data analysis with Python

Many physical systems can be modeled as an equation, which in Python would be represented by a function $f$. If an appropriate function $f$ can be found for an experiment we can use the equation to determine physical parameters releted to the experiment, and we can use this new model to predict new things about the world. Galileo used this method to calculate the trajectory of canonballs by rolling them down inclined ramps.

In experimental physics, we constrain these models by designing an experiment with two quantities. The first quantity, that we can control, is the independent variable. The second quantity, that we can measure, is the dependent variable. The relationship between these two quantities can then be used to determine some physical parameters.

A simple example of measuring the path of moving object. We could guess that the model is moving at a constant speed and design an experiment to find that speed using the model:

\[s = ut\]

Scipy provides functions that can fit model functions to data.

Scipy provides a number of functions that, given a suitable model function, can return the best estimate of the unknown parameters in the model.

Consider the experiment where the time of flight of an object moving at constant speed is measured. If the experiment is correctly setup. The unknown variable we are trying to determine is the speed $u$. The remaining variables are time $t$ and height $s$. We can design two different experiments, one where we control time (measuring at a fixed interval) and measure distance, or one where we control distance and measure time.

In Python the model function might be written as:

def distance(time, speed):
    """Calculate the distance travelled at a constant speed for a known time."""
    return speed * time

def model_function(independent_data, parameter1, parameter2):
    """A template for the model function."""
    dependent_data = parameter1 * independent_data + parameter2
    return dependent_data

#control time, measure distance
import numpy
# derr is my estimate of errors measuring distance, my ruler is bad.
derr = 5 # metres
measured_times =numpy.arange(10,100,10) #time in seconds
measured_distances = numpy.array([ 108.2,  220.4,  360.2,  482.8,
        630.6,  793.9,  947.5, 1125.0, 1314.9]) # distance in metres
distance_errors = numpy.ones_like(measured_distances)*derr

For such a simple model, the average speed can be calculated from the data quite easily.

speeds = numpy.diff(measured_distances) / numpy.diff(measured_times)
average_speed = numpy.average(speeds)
print("Average speed is {:.04g} m/s".format(average_speed))
mean_times_error = numpy.std(speeds, ddof=1)/numpy.sqrt(speeds.size)
mean_times_std = numpy.sqrt( numpy.mean( derr**2 * numpy.ones(speeds.size)) )

#error propagation, sum in quadrature
speed_error = numpy.sqrt( numpy.mean( (distance_errors / measured_distances)**2) )* average_speed
print("Standard error in average speed is {:.03g} m/s".format(mean_times_error))
print("Error in average speed is {:.03g} m/s".format(speed_error))

Average speed is 15.08 m/s
Standard error in average speed is 0.928 m/s
Error in average speed is 0.281 m/s

# Copied here to make it easier to find!
def distance(time, speed):
    """Calculate the distance travelled at a constant speed for a known time."""
    return speed * time

You can also use scipy.optimize.curve_fit to perform this calculation.

from scipy.optimize import curve_fit

popt, pcov = curve_fit(distance, measured_times, measured_distances)

print("Speed is %4g m/s" % popt[0])

pvar = numpy.diag(pcov)
print("Error in fitted speed is {:.03g} m/s".format(numpy.sqrt(pvar[0])))

    Speed is 13.6645 m/s
    Error in fitted speed is 0.31 m/s

What is `popt`, `pvar`?

popt is a one dimensional array of the best estimates for the parameter values, each entry matches the order in the function definition
pcov is the covariance matrix showing the uncertainty and interdependence of each parameter in popt. We take the diagonal elements as pvar for the variance of each parameter in popt.
The above error didn’t consider the errors in the individual data points correctly.
Give curve_fit the error values using the sigma keyword, and always use absolute_sigma=True

Exercise 1

Predict the value of distance at after 10 seconds and 100s.

Calculate predictions using the model function

curve_fit needs a model function to make predictions.
Any calculations using that model should also use the function to avoid errors
e.g. when plotting the predictions you should call the model_function, and not rewrite the equation

# Always predict with the model function!
d10 = distance(10, popt[0])
d100 = distance(100, popt[0])
print("After 10 seconds, predicted distance = {:.4g}m".format(d10))
print("After 100 seconds, predicted distance = {:.4g}m".format(d100))

#dont_do_this
rewrite10 = popt[0] * 10
print("After 10 seconds, predicted distance = {:.4g}m".format(rewrite10))

#or this
hardcoded10 = 13.64 * 10
print("After 10 seconds, predicted distance = {:.4g}m".format(hardcoded10))

    After 10 seconds, predicted distance = 136.6m
    After 100 seconds, predicted distance = 1366m
    After 10 seconds, predicted distance = 136.6m
    After 10 seconds, predicted distance = 136.4m

popt, pcov = curve_fit(distance, measured_times, measured_distances,
                       absolute_sigma=True, sigma = distance_errors)
pvar = numpy.diag(pcov)

print("Average speed is {:.04g} m/s".format(popt[0]))
print("Error in fitted speed is {:.03g} m/s".format(numpy.sqrt(pvar[0])))

    Average speed is 13.66 m/s
    Error in fitted speed is 0.0296 m/s

With the correct error estimates, the model is more certain about the speed, but the eastimate of the average speed didn’t change.

The model function needs to follow the `curve_fit` rules

The function must take and array of independent data as its first argument
The function can take any number of additional parameters that will be found using curve_fit
The function must return a single prediction of the dependent data for each value in the independent data.

def good_model_function(xdata, parameter_1, parameter_2, parameter_3):
    # code_that_calculates_a_model
    return prediction

`curve_fit` works with multiple parameters

Extending the above experiment, what if the object was actually accelerating? The model function is now

\[s = ut + \frac{1}{2} at^2\]

where $a$ is the acceleration. We can change the model function and run the curve_fit code again

def distance_with_acceleration(time, speed, acceleration):
    """Calculate the distance travelled with at a constant speed for a known time
    and constant acceleration."""
    return speed * time + 0.5 * acceleration * time**2

from scipy.optimize import curve_fit
popt2, pcov2 = curve_fit(distance_with_acceleration, measured_times, measured_distances,
                       absolute_sigma=True, sigma = distance_errors)
print("Initial speed is {:.04g} m/s".format(popt2[0]))
print("Error in fitted initial speed is {:.03g} m/s".format(numpy.sqrt(pcov2[0,0])))

print("Acceleration is {:.04g} m/s2".format(popt2[1]))
print("Error in fitted acceleration is {:.03g} m/s2".format(numpy.sqrt(pcov2[1,1])))

    Initial speed is 10.26 m/s
    Error in fitted initial speed is 0.119 m/s
    Acceleration is 0.09589 m/s2
    Error in fitted acceleration is 0.00325 m/s2

The data use here is fake, generated with an initial speed of 10.86 m/s and an acceleration of 0.1$m/s^2$. The model with constant speed predicted a higher speed to compensate for the acceleration!

Exercise 1

How could we have quickly checked whether our model was good?

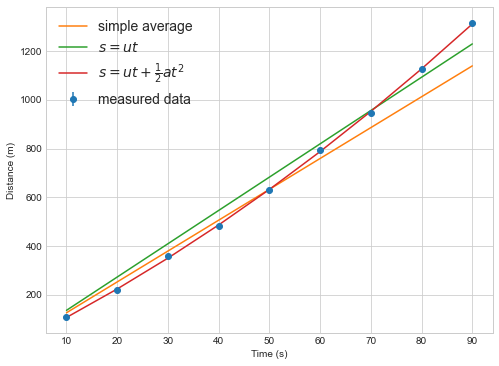

A plot would have quickly showed the linear model is not correct, or printing each value predicted might tell us something too for small amounts of data.

%matplotlib inline
import matplotlib.pyplot as plt
plt.style.use("seaborn-whitegrid")
plt.figure(figsize=(8,6))
plt.errorbar(measured_times, measured_distances,yerr=distance_errors, marker='o', linestyle='none', label="measured data")
plt.plot(measured_times, distance(measured_times, numpy.mean(speeds)),label='simple average')
plt.plot(measured_times, distance(measured_times, popt[0]),label='$s=ut$')
plt.plot(measured_times, distance_with_acceleration(measured_times, popt2[0],popt2[1]),label=r'$s=ut+\frac{1}{2}at^2$')
plt.legend(fontsize=14)
plt.xlabel("Time (s)")
plt.ylabel("Distance (m)")

png

Always plot your data and model fits.

Plotting residuals

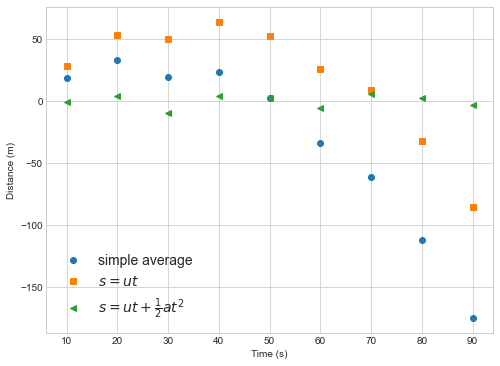

Once you have a model prediction, you can check for problems in the model using a residual plot. Plot the difference between the model prediction and the measured data.

%matplotlib inline
import matplotlib.pyplot as plt
plt.style.use("seaborn-whitegrid")
plt.figure(figsize=(8,6))
plt.plot(measured_times, distance(measured_times, numpy.mean(speeds))-measured_distances,label='simple average',marker='o',ls='')
plt.plot(measured_times, distance(measured_times, popt[0])-measured_distances,label='$s=ut$',marker='s',ls='')
plt.plot(measured_times, distance_with_acceleration(measured_times, popt2[0],popt2[1])-measured_distances,label=r'$s=ut+\frac{1}{2}at^2$',marker='<',ls='')
plt.legend(fontsize=14)
plt.xlabel("Time (s)")
plt.ylabel("Distance (m)")

png

In this example you can see that the linear model (simple average or s=ut) deviates from the data in a way that depends on the independent variable (time). If the model fit is good we expect to see differences betwee model and data that are random in magnitude and location (as in the quadratic fit).

`curve_fit` find the best estimate of the parameters using by minimizing chi squared.

Curve fit works by finding the combination of parameters that gives the lowest value of a parameter $\chi^2$, defined as

\[\chi^2 = \sum\frac{(y_i - f(x_i))^2}{\sigma_{y_i}^2}\]

The lower the value of $\chi^2$, the closer the model is on average to each measured data point.
This metric penalizes outliers disproportionally because of the square factor
The metric weights the penalty of each point by the inverse of the standard deviation, penalizing (genuinely) noisier outliers less than less noisy outliers.

Reduced chi squared is easier to understand and compare between data sets.

The value of $\chi^2$ for a good model depends on the number of data points and model parameters.
A related variable $\chi_r^2 = \frac{\chi^2}{\mathrm{dof}}$ is defined such that a the ideal value is 1.0.
To get the metric we need the number of degrees of freedom (dof) defined as the number of data points (N) minus the number of unknown parameters (m) $\mathrm{dof} = N - m$.
High values of $\chi_r^2$ are bad and suggest the model does a poor job of fitting the data.
Low values («1) are also bad, suggesting the model fits the data too well.
A low value suggests the model is fitting data better than the average error in the data should allow.

def chi2(y_measure,y_predict,errors):
    """Calculate the chi squared value given a measurement with errors and prediction"""
    return numpy.sum( (y_measure - y_predict)**2 / errors**2 )

def chi2reduced(y_measure, y_predict, errors, number_of_parameters):
    """Calculate the reduced chi squared value given a measurement with errors and prediction,
    and knowing the number of parameters in the model."""
    return chi2(y_measure, y_predict, errors)/(y_measure.size - number_of_parameters)

print("Constant velocity model chi2r=",chi2reduced(measured_distances,
                                        distance(measured_times,popt[0]),
                                        distance_errors,
                                        1))

print("Constant acceleration model chi2r=",chi2reduced(measured_distances,
                                        distance_with_acceleration(measured_times,popt2[0],popt2[1]),
                                        distance_errors,
                                        2))

    Constant velocity model chi2r= 109.63987561403505
    Constant acceleration model chi2r= 1.1810606671759618

Chi square values should be rounded to a small number of digits, keeping only 1 or 2 significant figures.

print("Constant velocity model chi2r=",round(chi2reduced(measured_distances,
                                        distance(measured_times,popt[0]),
                                        distance_errors,
                                        1),-1))

print("Constant acceleration model chi2r=",round(chi2reduced(measured_distances,
                                        distance_with_acceleration(measured_times,popt2[0],popt2[1]),
                                        distance_errors,
                                        2),1))

    Constant velocity model chi2r= 110.0
    Constant acceleration model chi2r= 1.2

Exercise 2

Put a print statement inside the model function distance_with_acceleration to print out the parameter values. What is happening to the parameter values?

def distance_with_acceleration_print(time, speed, acceleration):
    """Calculate the distance travelled with at a constant speed for a known time
    and constant acceleration."""

    print ("speed=",speed, "acceleration=",acceleration)
    return speed * time + 0.5 * acceleration * time**2

popt2, pcov2 = curve_fit(distance_with_acceleration_print, measured_times, measured_distances,
                       absolute_sigma=True, sigma = distance_errors)

    speed= 1.0 acceleration= 1.0
    speed= 1.0 acceleration= 1.0
    speed= 1.0 acceleration= 1.0
    speed= 1.0000000149011612 acceleration= 1.0
    speed= 1.0 acceleration= 1.0000000149011612
    speed= 10.257717023193093 acceleration= 0.0958943850247661
    speed= 10.257717176044988 acceleration= 0.0958943850247661
    speed= 10.257717023193093 acceleration= 0.0958943864537038
    speed= 10.257717023531002 acceleration= 0.09589438501373611

Non-linear regression

Mathematically, curve_fit is using least squared error regression to find the best parameter estimate.
curve_fit works with non linear model (e.g. $y=at^{(b-1)}+c$) and the error estimates are usually correct.

When fitting non-linear functions, use the `p0` keyword to start `curve_fit` with a good estimate

p0 is used to provide a first guess of the parameters you are trying to find
If you have some idea of a parameter value, use p0 to give curve_fit a better chance of finding the global minimum error for non-linear functions
Don’t be too precise so as not to bias the fitting process.

iteration=0

def nonlinear_function(t, a, b, c,verbose=True):
    global iteration
    if verbose:
        print (iteration, "a=",a, "b=",b, "c=",c)
    iteration = iteration+1
    return a*t**(b-1) + c

#generated "good" data
t=numpy.arange(10)
y=numpy.array([-0.173, 2.12, 9.42, 19.69, 37.16, 59.40, 96.59, 119.448, 158.0,201.9])
sigmaNL = numpy.ones(10)*0.5

First, try fitting the non-linear function with no initial guess

iteration=0
poptNL1, pcovNL1 = curve_fit(nonlinear_function, t, y,
                       absolute_sigma=True, sigma = sigmaNL)

a= 1.0 b= 1.0 c= 1.0
a= 1.0 b= 1.0 c= 1.0
a= 1.0 b= 1.0 c= 1.0
a= 1.0000000149011612 b= 1.0 c= 1.0
a= 1.0 b= 1.0000000149011612 c= 1.0
a= 1.0 b= 1.0 c= 1.0000000149011612
a= 77.19199892187382 b= 1.000001167729559 c= 1.0
a= 77.19200007212423 b= 1.000001167729559 c= 1.0
a= 77.19199892187382 b= 1.0000011826307376 c= 1.0
a= 77.19199892187382 b= 1.000001167729559 c= 1.0000000149011612
...
a= 2.5074171106029874 b= 2.9990317544021594 c= -0.9734594072738433
a= 2.507417147966414 b= 2.9990317544021594 c= -0.9734594072738433
a= 2.5074171106029874 b= 2.999031799091215 c= -0.9734594072738433
a= 2.5074171106029874 b= 2.9990317544021594 c= -0.9734593927681677
a= 2.5074210685973637 b= 2.999031031902325 c= -0.9734725519528605

Try a good guess for the parameters

iteration = 0
poptNL2, pcovNL2 = curve_fit(nonlinear_function, t, y,
                       absolute_sigma=True, sigma = sigmaNL, p0=(2.5,3,0))
#I think it's 2.5*t^2 with no offset

a= 2.5 b= 3.0 c= 0.0
a= 2.5 b= 3.0 c= 0.0
a= 2.5 b= 3.0 c= 0.0
a= 2.500000037252903 b= 3.0 c= 0.0
a= 2.5 b= 3.0000000447034836 c= 0.0
a= 2.5 b= 3.0 c= 1.4901161193880158e-08
a= 2.507540116653946 b= 2.9990074809599334 c= -0.973917163330992
a= 2.5075401540192055 b= 2.9990074809599334 c= -0.973917163330992
a= 2.507540116653946 b= 2.9990075256486275 c= -0.973917163330992
a= 2.507540116653946 b= 2.9990074809599334 c= -0.9739171488184953
a= 2.5074184226341583 b= 2.9990315172382234 c= -0.9734643979860024
a= 2.5074184599976044 b= 2.9990315172382234 c= -0.9734643979860024
a= 2.5074184226341583 b= 2.9990315619272754 c= -0.9734643979860024
a= 2.5074184226341583 b= 2.9990315172382234 c= -0.9734643834802524
a= 2.5074209783416057 b= 2.9990310475838156 c= -0.9734720313746336

Now try an unreasonable guess for the b parameter

iteration = 0
poptNL3, pcovNL3 = curve_fit(nonlinear_function, t, y,
                       absolute_sigma=True, sigma = sigmaNL, p0=(3,-2,0.1))
#I think it's 3/t^3 +0.1

    0 a= 3.0 b= -2.0 c= 0.1
    1 a= 3.0 b= -2.0 c= 0.1
    2 a= 3.0 b= -2.0 c= 0.1
    3 a= 3.0000000447034836 b= -2.0 c= 0.1
    4 a= 3.0 b= -1.9999999701976776 c= 0.1
    5 a= 3.0 b= -2.0 c= 0.10000000149011612


    <ipython-input-16-1520d182c2d1>:7: RuntimeWarning: divide by zero encountered in power
      return a*t**(b-1) + c
    /Users/lee/anaconda3/lib/python3.8/site-packages/scipy/optimize/minpack.py:828: OptimizeWarning: Covariance of the parameters could not be estimated
      warnings.warn('Covariance of the parameters could not be estimated',

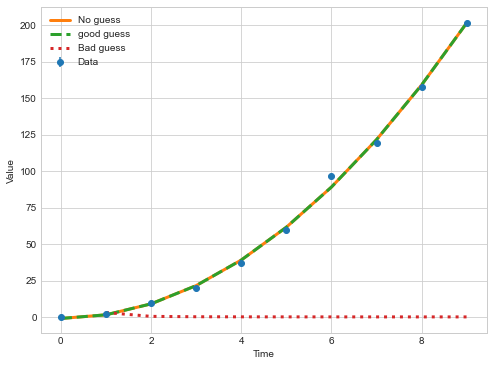

It’s always important to check the fit

plt.figure(figsize=(8,6))
plt.errorbar(t,
             y,
             yerr=sigmaNL, marker='o',ls='none',label="Data")

def plot_and_print(popt,ls,label):
    plt.plot(t, nonlinear_function(t,popt[0],popt[1],popt[2]),label=label,ls=ls,lw=3)
plot_and_print(poptNL1,"-","No guess")
plot_and_print(poptNL2,"--","good guess")
plot_and_print(poptNL3,":","Bad guess")

plt.legend()
plt.xlabel("Time")
plt.ylabel("Value")

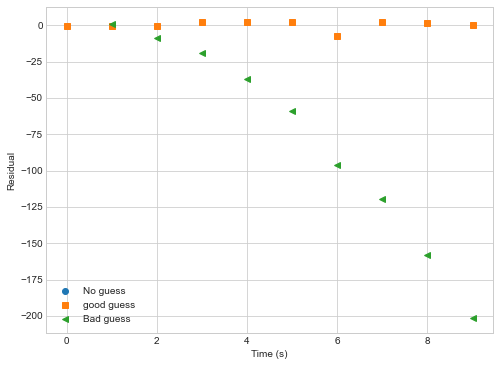

plt.figure(figsize=(8,6))



def plot_residual(data, popt,marker,label):
    plt.plot(t, nonlinear_function(t,popt[0],popt[1],popt[2],verbose=False)-data,label=label,marker=marker,ls='',lw=3)
plot_residual(y,poptNL1,"o","No guess")
plot_residual(y,poptNL2,"s","good guess")
plot_residual(y,poptNL3,"<","Bad guess")

plt.legend()
plt.setp(plt.gca(),ylabel="Residual",xlabel="Time (s)")

a= 2.5074210685973637 b= 2.999031031902325 c= -0.9734725519528605
a= 2.5074209783416057 b= 2.9990310475838156 c= -0.9734720313746336
a= 3.0 b= -2.0 c= 0.1

png

Key Points

scipy provides tools and functions to fit models to data.

Use curve_fit to fit linear and non-linear models to experimental data

Use appropriate errors in the sigma keyword to get a better estimate of parameter errors.

Check the fit using a plot if possible

Check the χ² value to compare the fit against the errors in the measurements.

Non linear models can be fitted, but may need an initial esimate of the parameters.

previous episode

PHY224 Python Review

next episode

Fitting data to models

Overview

Data analysis with Python

Scipy provides functions that can fit model functions to data.

What is `popt`, `pvar`?

Exercise 1

Calculate predictions using the model function

The model function needs to follow the `curve_fit` rules

`curve_fit` works with multiple parameters

Exercise 1

Plotting residuals

`curve_fit` find the best estimate of the parameters using by minimizing chi squared.

Reduced chi squared is easier to understand and compare between data sets.

Exercise 2

Non-linear regression

When fitting non-linear functions, use the `p0` keyword to start `curve_fit` with a good estimate

Key Points

previous episode

next episode

previous episode

PHY224 Python Review

next episode

Fitting data to models

Overview

Data analysis with Python

Scipy provides functions that can fit model functions to data.

What is popt, pvar?

Exercise 1

Calculate predictions using the model function

The model function needs to follow the curve_fit rules

curve_fit works with multiple parameters

Exercise 1

Plotting residuals

curve_fit find the best estimate of the parameters using by minimizing chi squared.

Reduced chi squared is easier to understand and compare between data sets.

Exercise 2

Non-linear regression

When fitting non-linear functions, use the p0 keyword to start curve_fit with a good estimate

Key Points

previous episode

next episode

What is `popt`, `pvar`?

The model function needs to follow the `curve_fit` rules

`curve_fit` works with multiple parameters

`curve_fit` find the best estimate of the parameters using by minimizing chi squared.

When fitting non-linear functions, use the `p0` keyword to start `curve_fit` with a good estimate
